iMETOS 3.3 and ECO D3 - Firmware Update

Modified on Thu, 23 Apr at 3:17 PM

USB cable type required: USB mini

1) Download and extract the latest release of the PI Service Terminal by clicking on THIS LINK.

In case you do not know how to install it, you may find THIS GUIDE useful.

2) Launch the PI Service Terminal application (.exe).

3) Turn on the advanced mode in the 'Settings' menu and 'Activate advanced mode':

Password: PIST2022

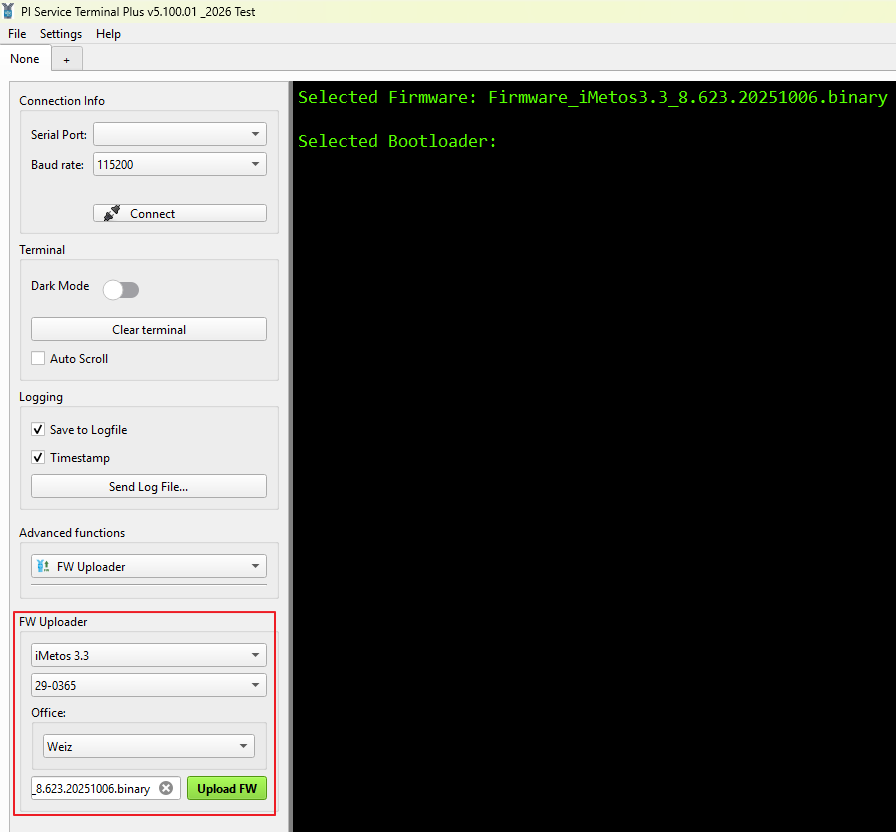

4) In the left section of the PI Service Terminal, locate 'Advanced functions' and choose 'FW Uploader' from the drop-down menu:

5) Make sure that the iMETOS 3.3 firmware 'Firmware_iMetos3.3_8.XX.XXXXXXXX.bin' or ECO D3 firmware 'Firmware_iMetosEcoD3_1.XX.XXXXXXXX.bin ' has been loaded into the field at the bottom of the FW Uploader section.

In case the firmware hasn't been loaded automatically or if you're looking to load an alternative firmware, you can manually load it by clicking on the field.

Latest firmware for the iMETOS 3.3 - LINK
Latest firmware for the iMETOS ECO D3 - LINK

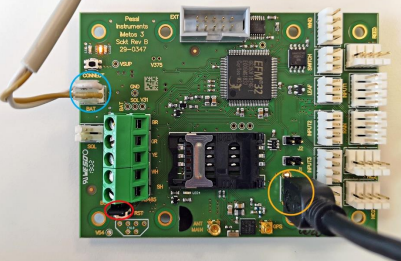

6) Plug in the USB cable.

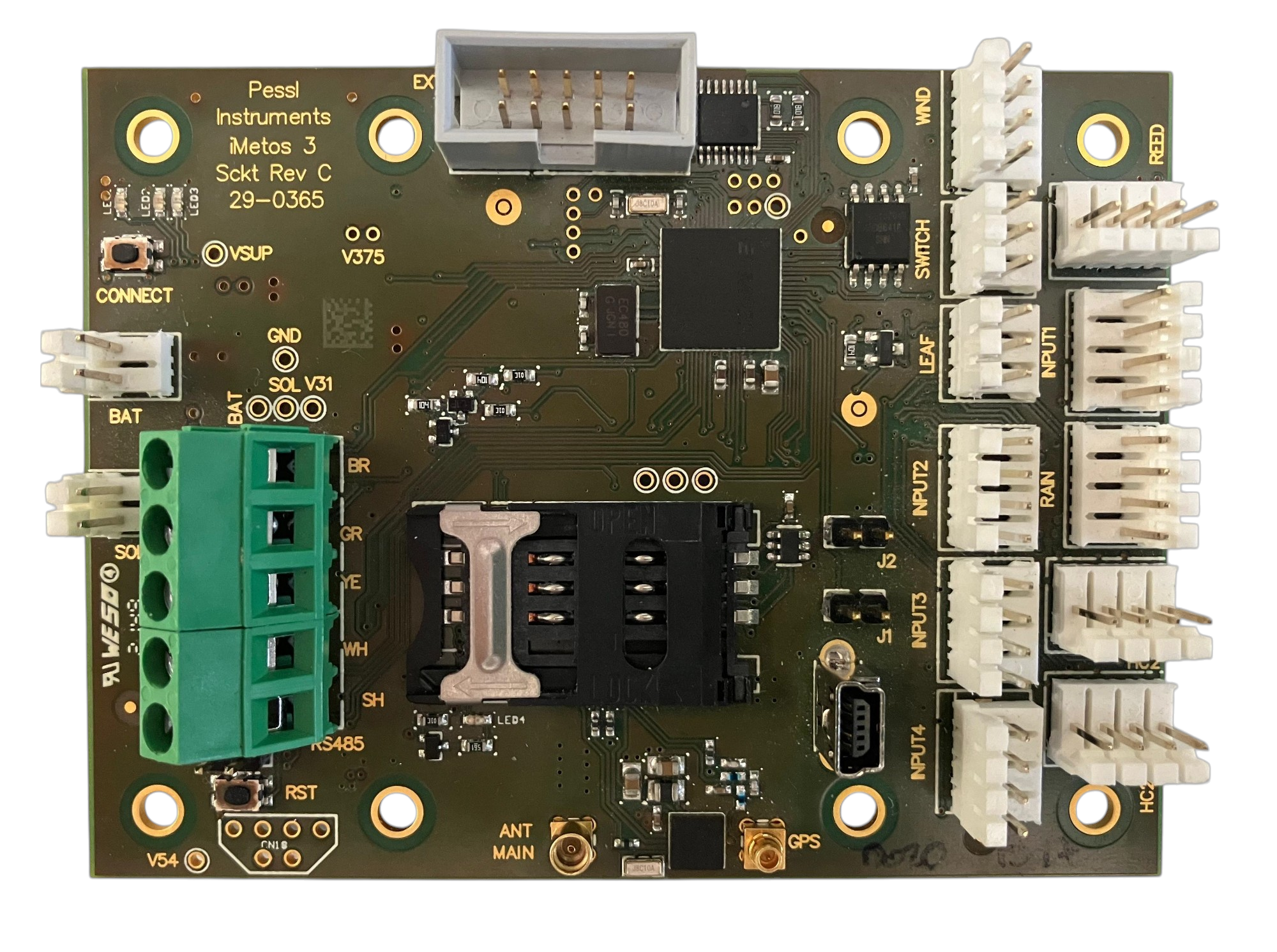

8) Insert the jumper into the BOOT pins.

9) Power on your iMETOS 3.3 or ECO D3.

!!! Note !!! Ensure the YELLOW led is lit.

10) Click on 'Connect'.

If a SERIAL PORT does not appear, inspect your USB cable and the USB port on your computer.

11) Click on 'Upload FW' and wait.

!!! Note !!! The firmware update takes place automatically. It is completed when the message 'firmware successfully uploaded' appears.

To test the sensors and the transmission, you may find this GUIDE useful.

If you have any questions or need additional help, please submit a ticket to our Support team at METOS® support center.
