Water Counter Interfaces Connection

METOS 5, µMetos NB-I-oT (29-0409), µMetos CLIMA LoRa, µMetos SOIL LoRa

SW1000 and SW1010 are not needed for METOS 5 and µMETOS family

Connector Wiring Diagram

Inputs

RAIN: METOS 5, µMETOS family
REED: METOS 5 only

METOS 5 and µMETOS Clima NB-IoT (29-0409) configuration is via station menu
µMETOS LoRa family configuration is via DIP switch

METOS 5, µMETOS Clima (29-0409) Input Configuration

C - Sensor settings

1 - Sensor type on RAIN            -> Rain Gauge
2 - Sensor resolution on RAIN      -> 0.2 mm
3 - Sensor type on REED            -> Water Meter (Resettable)
4 - Sensor resolution on REED      -> 1 L

Current sensor type on REED: Water Meter (Resettable) - same work for RAIN

0    - Rain Gauge
1    - Water Meter (Resettable)
2    - Water Meter (Accumulative)

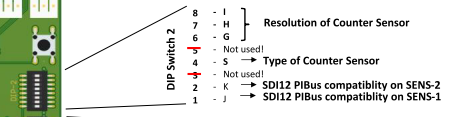

µMETOS Clima/Soil LoRa DIP Switch Configuration

Interfaces for iMETOS 3.3 and ECO D3
If another Water Counter than PI is used, it must have a reed relay other wise it will not work.

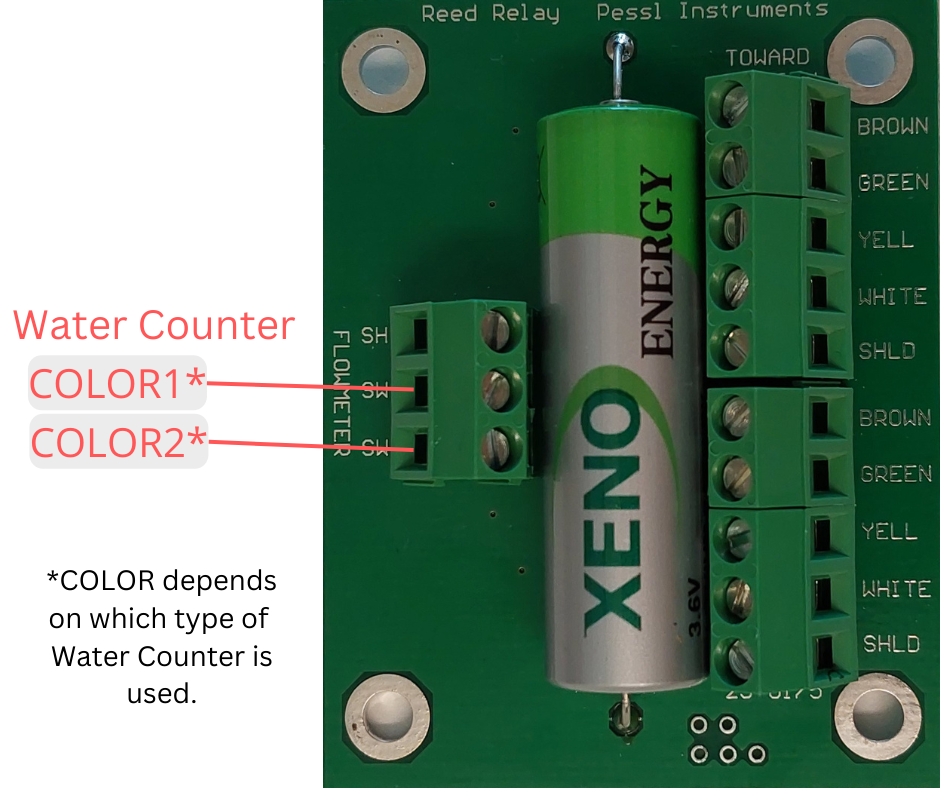

SW1010 PI-bus (Flowmeter Interface)

Where to Connect It

iMETOS 3.3

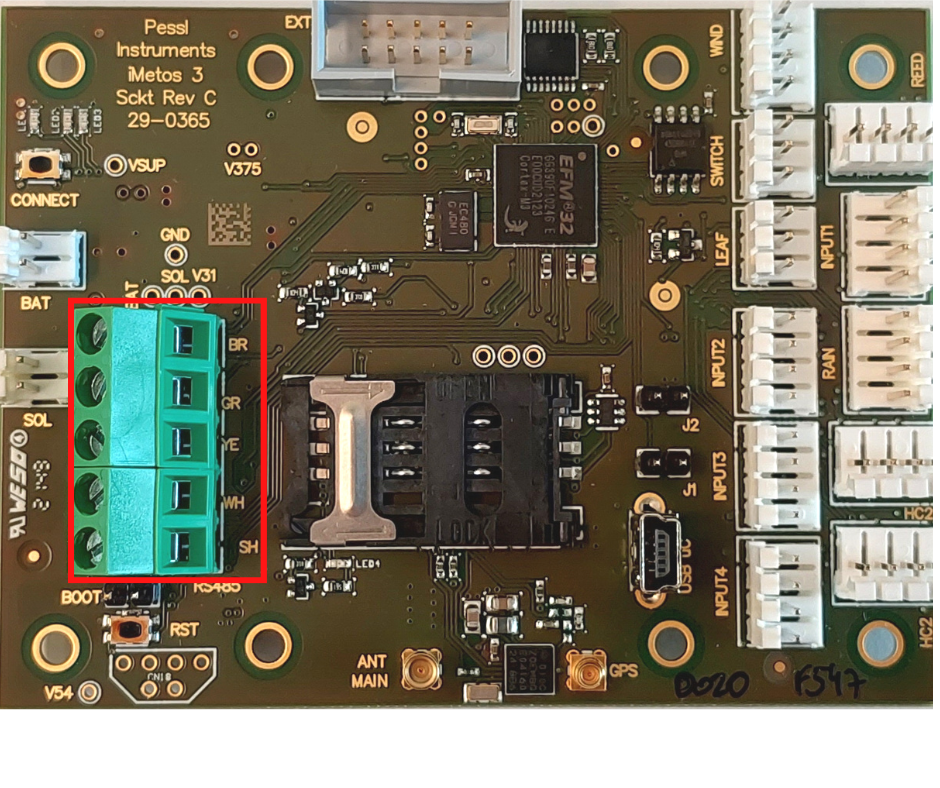

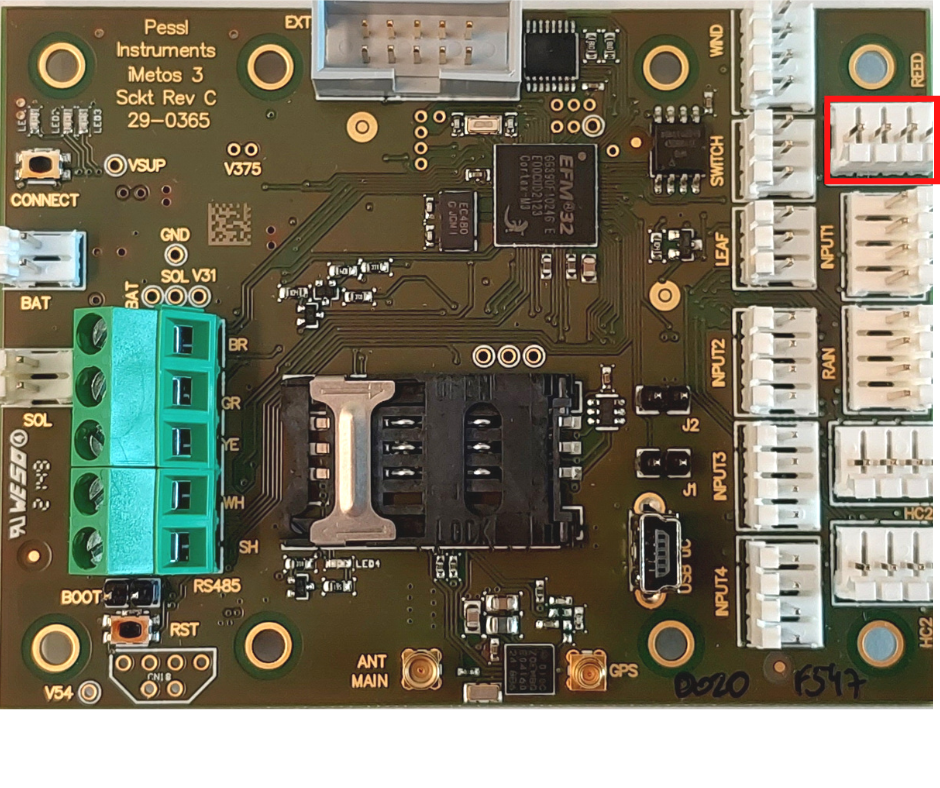

(See the red square below where Interface and PCB should be connected via cable)

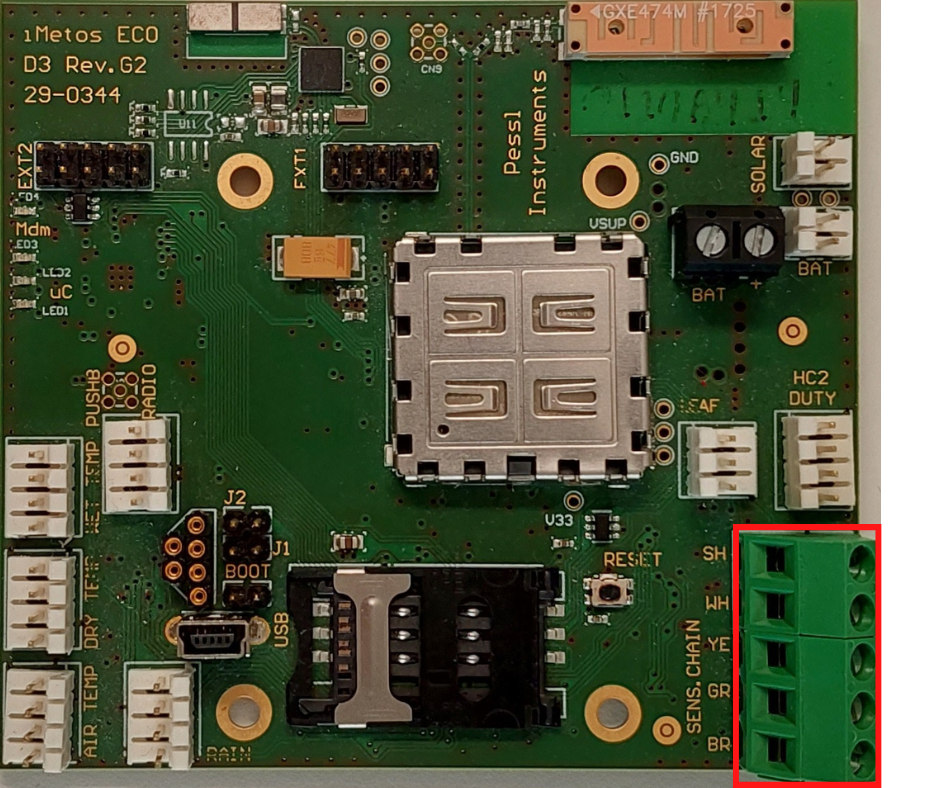

iMETOS ECO

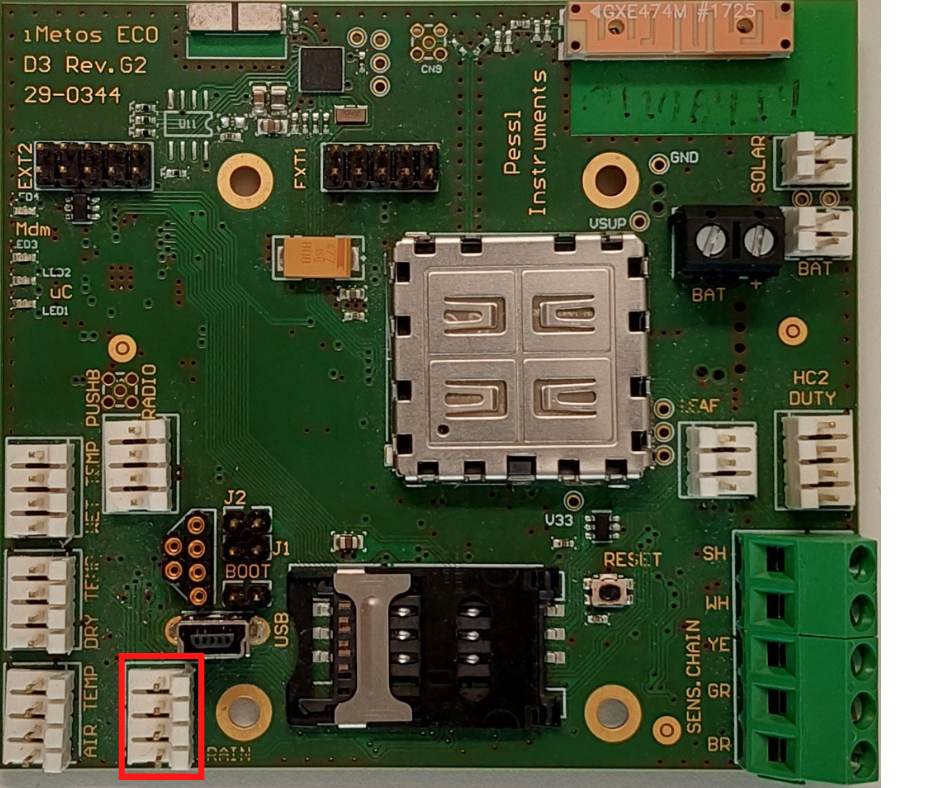

(See the red square below where Interface and PCB should be connected via cable

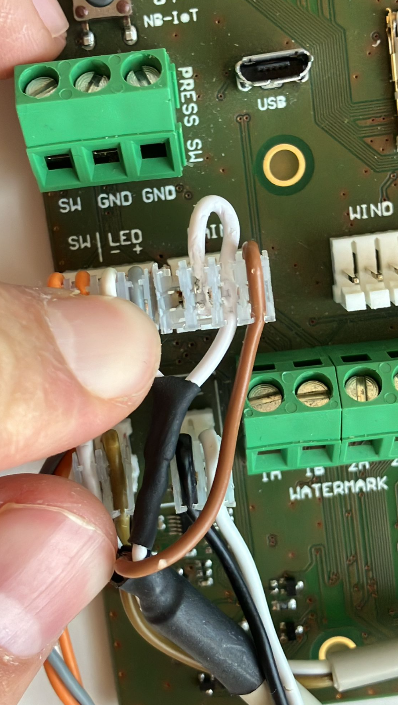

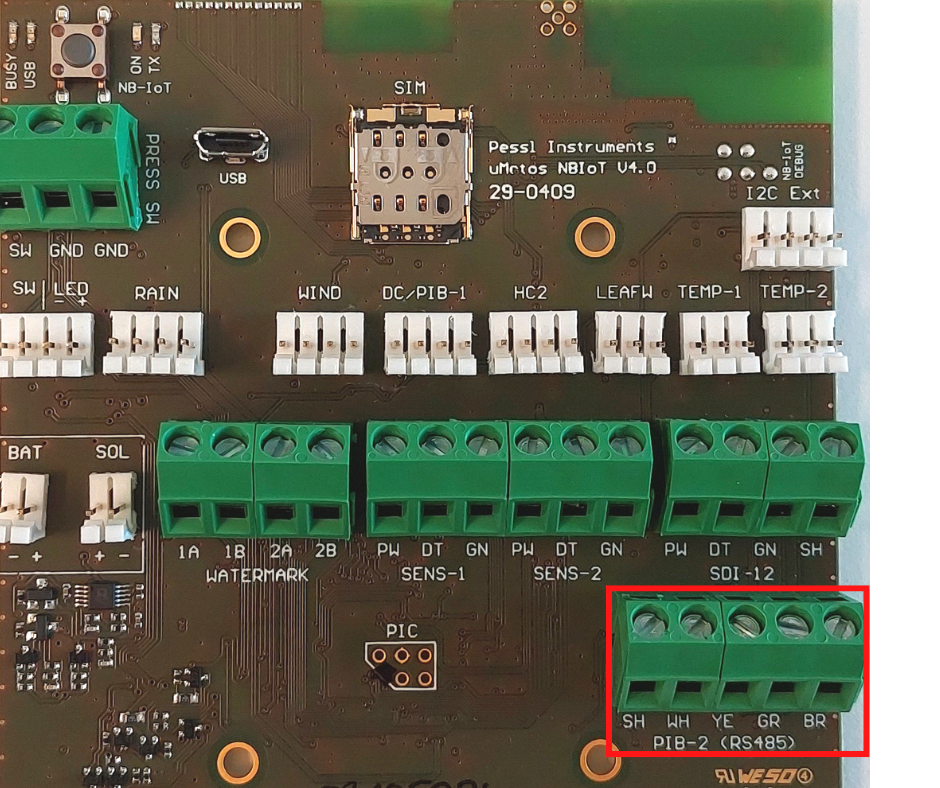

µMetos NB-IoT (29-0409)

(See the red square below where Interface and PCB should be connected via cable)

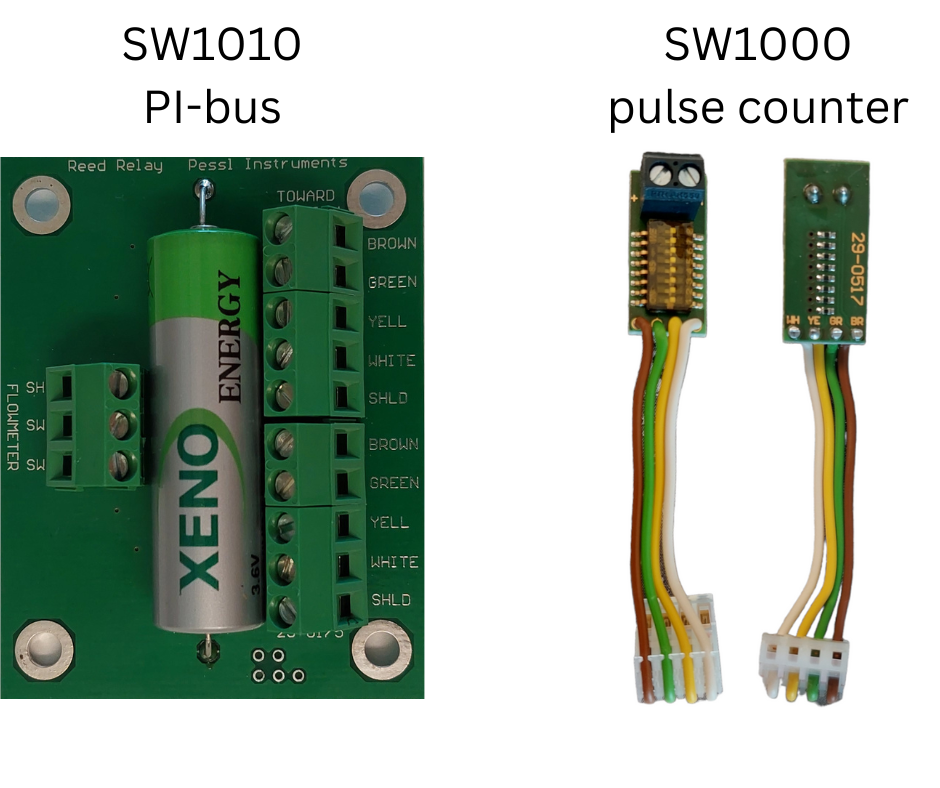

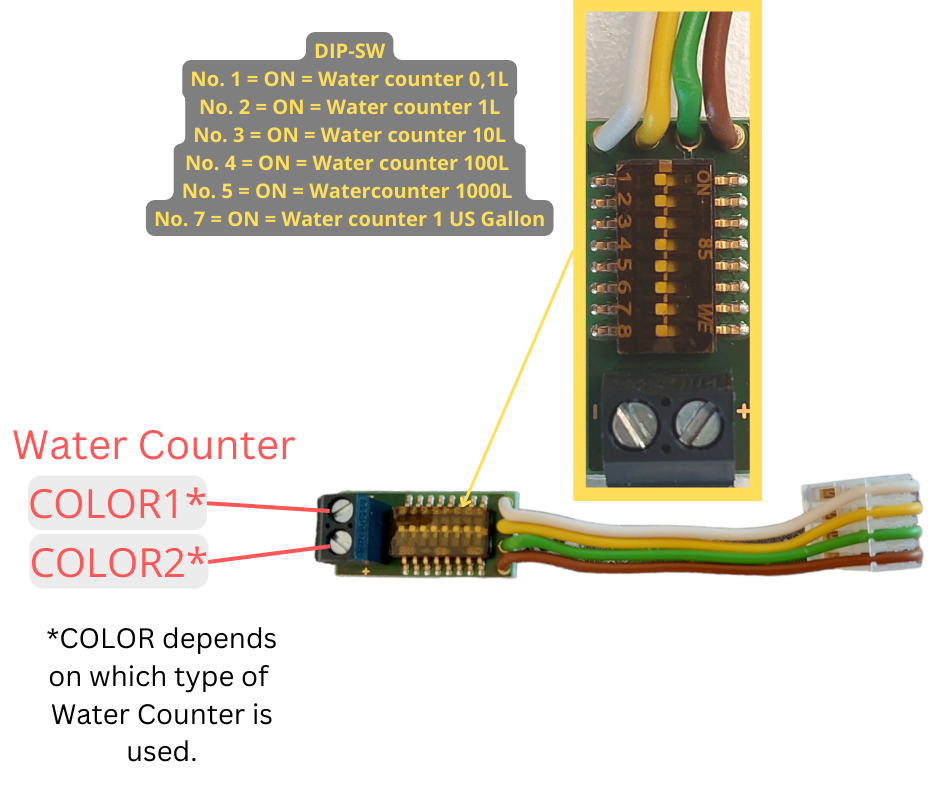

SW1000 pulse counter (Reed/Rain input)

Only required for iMETOS 3.3 and ECO D3. For METOS 5 and uMETOS family, refer to "µMetos NB-I-oT (29-0409), µMetos CLIMA LoRa, µMetos SOIL LoRa"

Connection with iMetos 3.3, iMetos ECO

iMETOS 3.3iMETOS ECO
