To replace the snap=inmodem you need:

  • Anti static mat or something to ground yourself
  • SNAP-IN TOOL to open the modem Housing on the PCB - Order number: 100493
  • New Modem
  • Pliers

Please follow the steps below:

  1. Make sure you grounded yourself otherwise the PCB could be damaged.


  2. Open the modem housing with the modem opening tool. Inset the tool into the openings and push it back.
    Do this on each side of the modem housing and remove it.
  3. Remove the old modem

  4. If you want to use the same modem housing again, take some pliers and adjust the sides so everything is straight again.

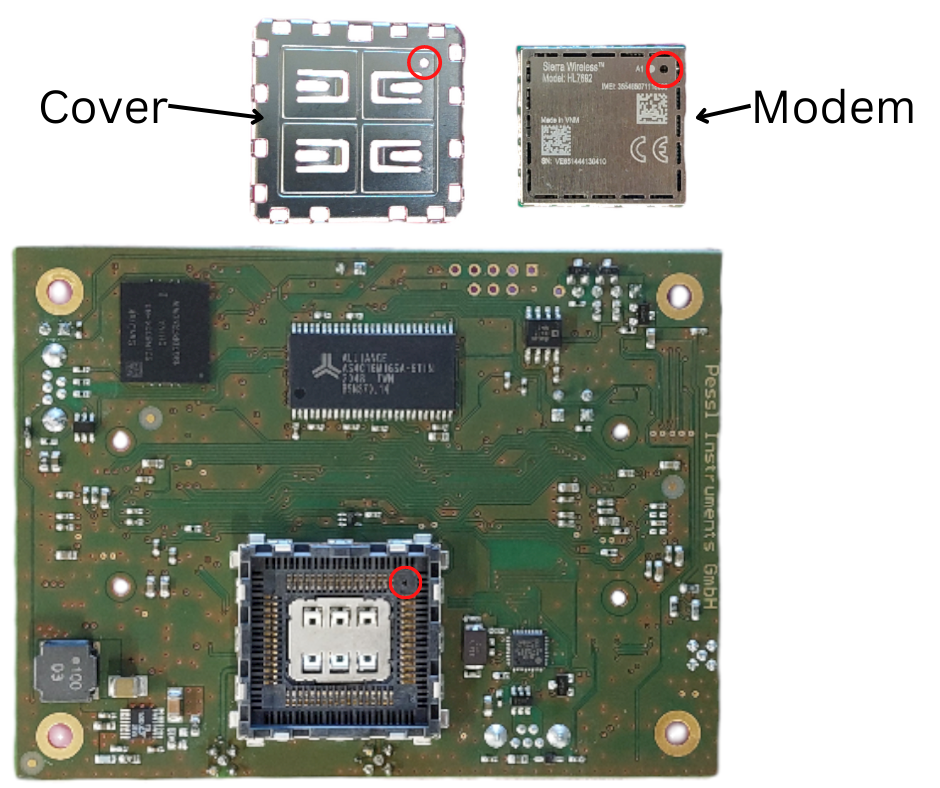

  5. Insert the new Modem so that the Point in the red Circles are on top of each other.


  6. Now Place the cover the same way and press it carefully together on all 4 sides, a gentle "click" can be heard.
