Prior to use, verify the product arrived in good condition.

Wiring



READ ME:
1) The interface only supports 1 Dendrometer.
2) More than 1 interface can be connected in chain (series). The wiring diagram is found at the end of the page.



Connect to iMETOS 3.3 and ECO D3


Interface required: 29-0240

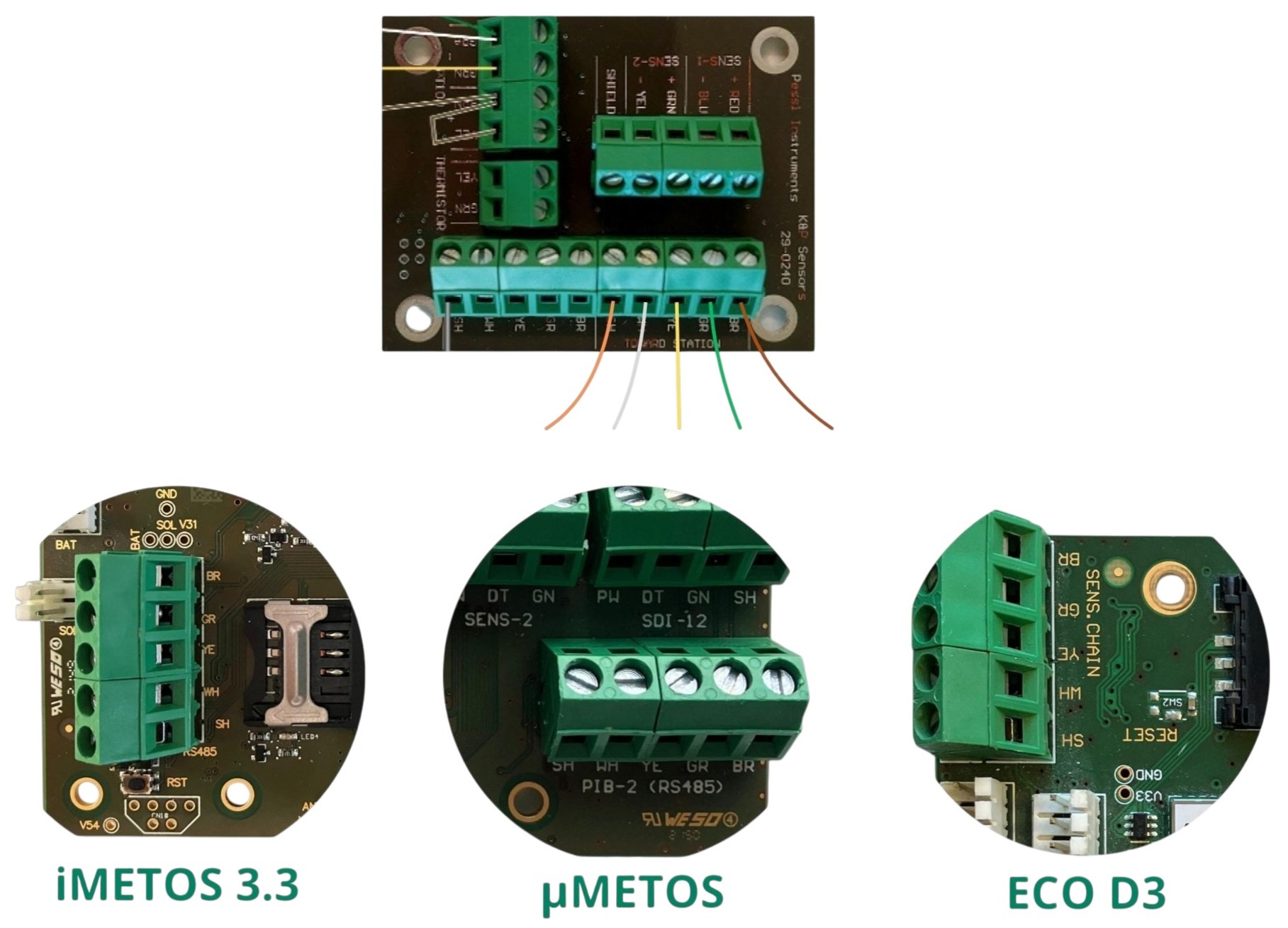

Connect the interface 29-0240 Input:

PIB-2 RS485 (µMETOS)
RS485 (iMETOS 3.3)
SENS. CHAIN (ECO D3)

Wiring:

BR = Brown
GR = Green
YE = Yellow
WH = White
SH = Orange/blue/bare

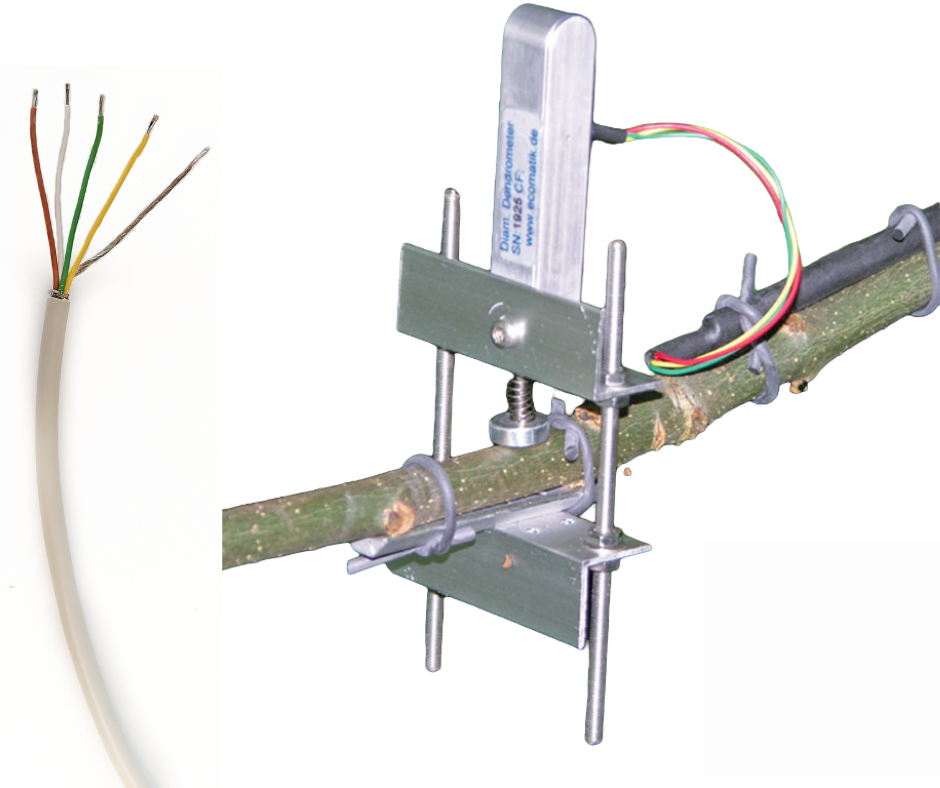

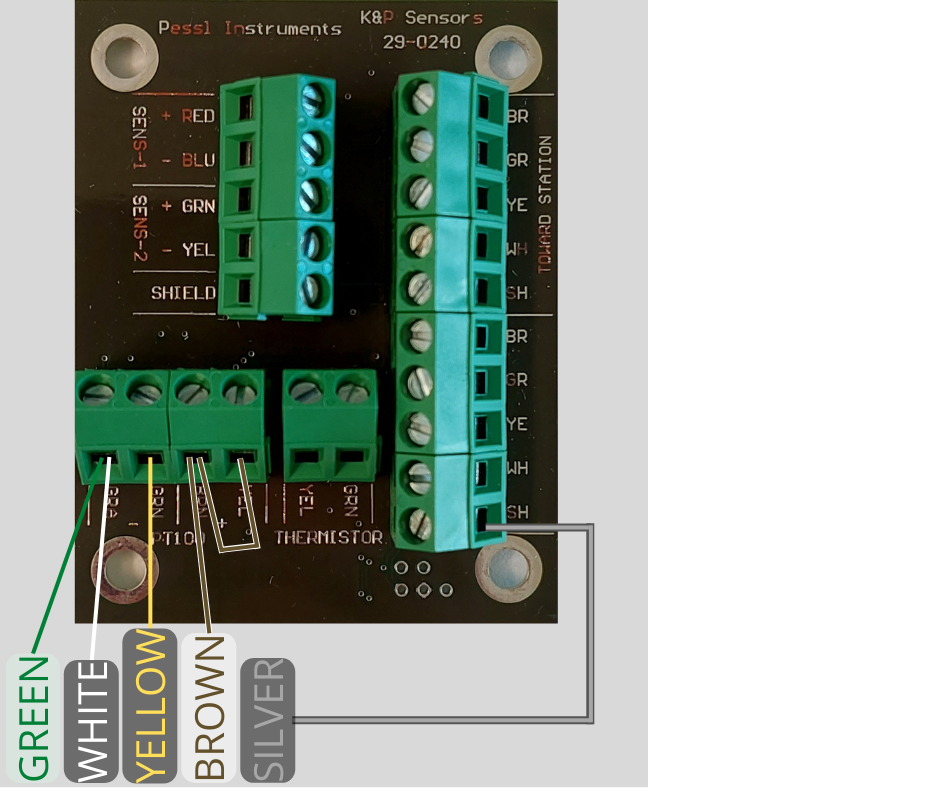

Connect the sensor to the interface

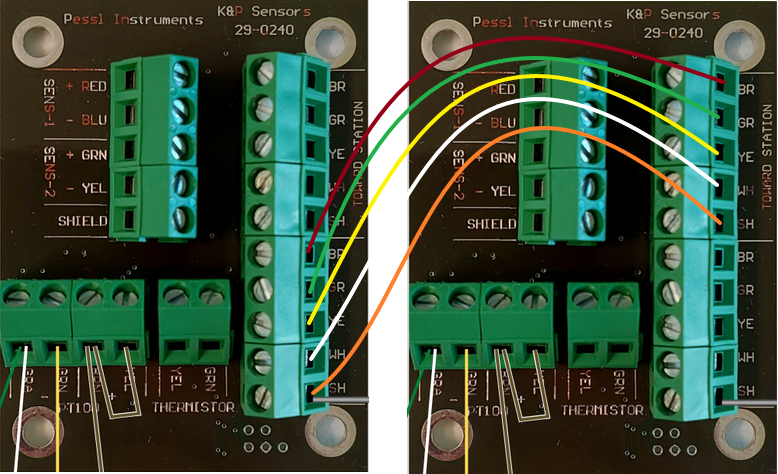

Connect more than 1 interface (chain)
