Prior to use, verify the product arrived in good condition.

Wiring


Wiring can vary depending on the sensor variant. Make sure to connect it correctly, observing the board compatibility and the sensor variant wiring diagram as per instructions below.


PI54D - variant 29-0717 & 29-0718



Boards compatibility: iMETOS 3.3, ECO D3, µMETOS, nMETOS, LoRAIN, RadioNode


Connect to METOS 5 and µMETOS

Input:

SENS-1
SENS-2

Wiring:

PW = White (Vcc)
DT = Brown (Data)
GN = Black/bare (Ground)



An additional configuration may be required in the menu of the station for the inputs in "C - sensor settings". For more detail, visit Settings at NB IoT Clima 29-0409.


Connect to nMETOS

Input:

SOILM

Wiring:

PW = White (Vcc)
DT = Brown (Data)
GN = Black/bare (Ground)



An additional configuration may be required in the menu of the station for the inputs in "C - sensor settings". For more detail, visit Settings at NB IoT Clima 29-0409.


Connect to iMETOS 3.3 and ECO D3


Interface required: ECHO870 29-0273 or ECH870 29-0254 or ECH871 29-0274 or ECHO871 29-0213 or ECHO847 29-0229


Connect the sensor to the interface ECHO870 29-0273 AND ECH870 29-0254

Input:

SENSOR 1
SENSOR 2
SENSOR 3

Wiring:

WH = White (Vcc)
RD = Brown (Data)
BR = Bare/shield (Ground)

DIP switch:

1 = ON  (sensor 1)
2 = OFF (sensor 1)
3 = OFF (sensor 1)
4 = ON  (sensor 2)
5 = OFF (sensor 2)
6 = OFF (sensor 2)
7 = ON  (sensor 3)
8 = OFF (sensor 3)
9 = OFF (sensor 3)



Connect the sensor to the interface ECH871 29-0274 AND ECH871 29-0213

Input:

SENSOR 1
SENSOR 2
SENSOR 3

Wiring:

WH = White (Vcc)
RD = Brown (Data)
BR = Bare/shield (Ground)

DIP swtich:

1 = ON (sensor 1)
2 = OFF (sensor 1)
3 = OFF (sensor 1)
4 = ON (sensor 2)
5 = OFF (sensor 2)
6 = OFF (sensor 2)



Connect the sensor to the interface 29-0229


Only PI54-D 29-0717 is supported.


Input:

SENSOR 1
SENSOR 2
SENSOR 3

Wiring:

WH = White (Vcc)
RD = Brown (Data)
BR = Bare/shield (Ground)

DIP Switch:

1 = OFF
2 = ON
3 = ON
4 = OFF



Connect to RadioNode

RFRN12 iMETOS RadioNode Watermark

SD31 iMETOS RadioNode Watermark



RFRN13 iMETOS RadioNode Drill & Drop

SD51 iMETOS RadioNode Drill & Drop


PI54D - variant 29-0719 (discontinued)



Boards compatibility: µMETOS (29-0409), nMETOS (29-0404).


Connect to METOS 5 and µMETOS

Input:

SENS-1
SENS-2

Wiring:

PW = Brown (Vcc)
DT = White (Data)
GN = Black/bare (Ground)



An extra configuration might be necessary in the station menu for the inputs under "C - sensor settings". For more details, visit Settings at NB IoT Clima 29-0409.

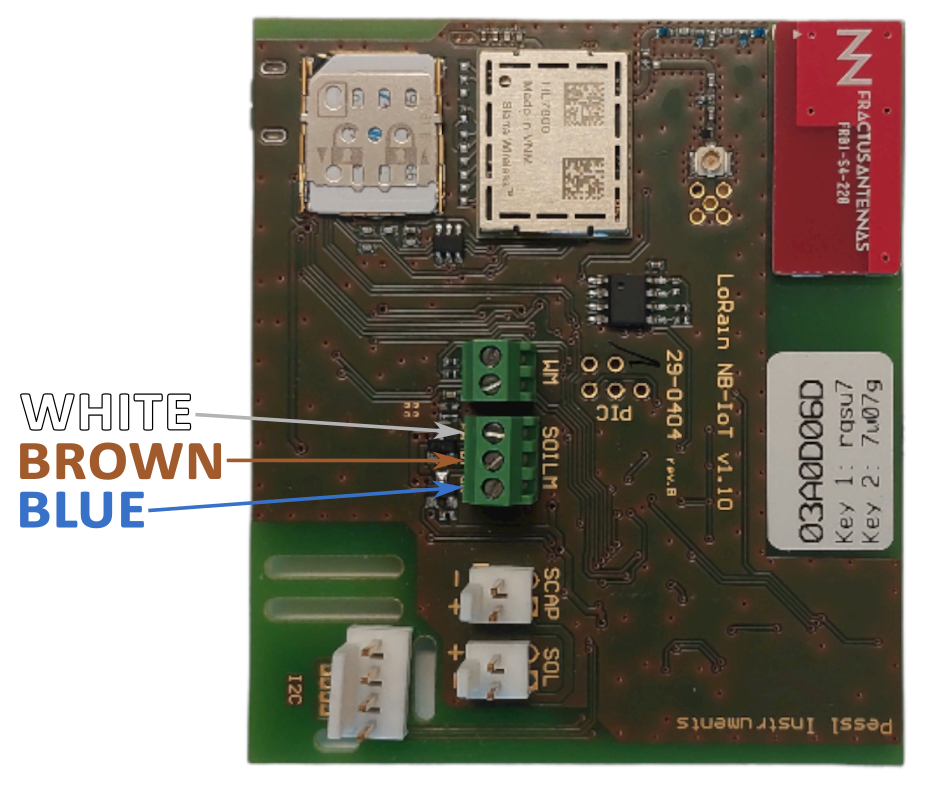

Connect to nMETOS

Input:

SOILM

Wiring diagram:

PW = Brown (Vcc)
DT = White (Data)
GN = Black/bare (Ground)


An extra configuration might be necessary in the station menu for the inputs under "C - sensor settings". For more details, visit Settings at NB IoT Clima 29-0409.
If you have any questions or need additional help, please submit a ticket to our Support team at METOS® support center.
